HI-3184PSIF-N

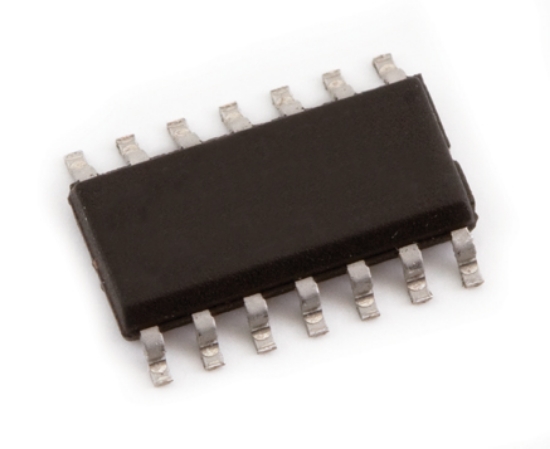

Picture of HI-3184PSIF-N
Package Description:14 Pin Plastic SOIC - NB (no heat-sink)
Temp Range:-40°C to +85°C
Flow:I
RoHS Compliant:Yes
Moisture Sensitivity Level:1
Product Longevity:> 10 Years
The following quality & reliability information is available for part #HI-3184PSIF-N
Reliability Monitor Data - Results by Package Type
HTOL Results by Process
TechnologyNumber of Units TestedEquivalent Device Hours at 55°CFailuresFIT(a)MTBF(b)
4.0um CMOS5,3367.96E+0823.92.56E+08

Notes:

a. FIT is calculated based on 0.8ev, 60%C.L. and Y1 of 55°C

b. MTBF is calculated as MTBF = 10E+09/FIT Rate.

c. The FIT rate for this process is based on foundry process qualification data and ongoing reliability monitoring.



Reliability Monitor Data - Results by Process Technology
8HN, 8HNE, 14HN, 14HNE, 16HN, 16HNE, 16HW, 16HWE, 18HW, 20HW, 20HWE, 24HW, 28HW (SOIC)
Reliability TestNumber of Units TestedFailuresPercentage Failures / Total Units x 100Total Device Hrs / Cycles
High Accelerated Stress Test (HAST)3,24100318,066
Temperature Cycle (TC)4,020004,020,000
Autoclave2,84500327,885
High Temperature Storage (HTS)3,331003,294,685
Holt Incoming QA Plastic Monitor6,27400903,456
